Запчасти для Metabo WE9-125Quick_00269000_TV00_EU230V

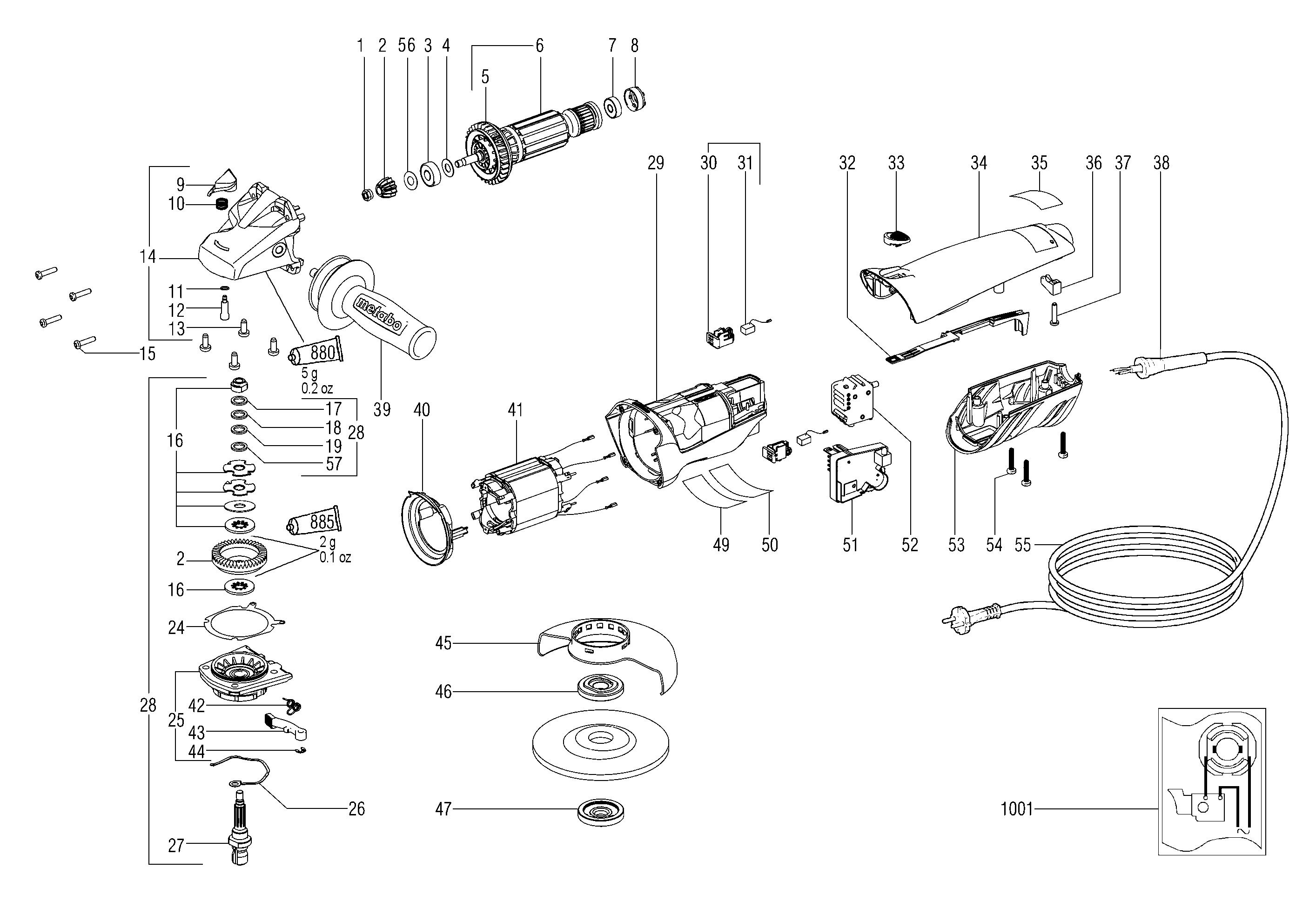

Запчасти для Metabo WE9-125Quick_00269000_TV00_EU230V. Схема, деталировка
№ ▼ |
Наименование |
Артикул |
Изоб. |
Цена |
|
|
Hexagon nut w.recess
Hexagon nut w.recess
341100940
316р.
1 |
Hexagon nut w.recess |
341100940 |
|
316р.
|
|
|
Bevel gear w.pinion
Bevel gear w.pinion
316041740
3168р.
2 |
Bevel gear w.pinion |
316041740 |
|
3168р.
|
|
|
Ball bearing,8x22x7
Ball bearing,8x22x7
143115180
950р.
3 |
Ball bearing,8x22x7 |
143115180 |
|
950р.
|
|
|
Washer,8,05x17x0,4
Washer,8,05x17x0,4
339133060
316р.
4 |
Washer,8,05x17x0,4 |
339133060 |
|
316р.
|
|
|
Fan w. prot. Grid
Fan w. prot. Grid
316041450
950р.
5 |
Fan w. prot. Grid |
316041450 |
|
950р.
|
|
|
Armature compl.,230V
Armature compl.,230V
310009060
9504р.
6 |
Armature compl.,230V |
310009060 |
|
9504р.
|
|
|
Ball bearing,6x19x6
Ball bearing,6x19x6
143115170
792р.
7 |
Ball bearing,6x19x6 |
143115170 |
|
792р.
|
|
|
Rubber bushing
Rubber bushing
344097870
316р.
8 |
Rubber bushing |
344097870 |
|
316р.
|
|
|
Push button red
Push button red
343393650
316р.
9 |
Push button red |
343393650 |
|
316р.
|
|
|
Pressure spring
Pressure spring
342003390
316р.
10 |
Pressure spring |
342003390 |
|
316р.
|
|
|
O-ring
O-ring
143193650
316р.
11 |
O-ring |
143193650 |
|
316р.
|
|
|
Bolt
Bolt
341515280
316р.
12 |
Bolt |
341515280 |
|
316р.
|
|
|
Fill. head screw(DIN 7985)
Fill. head screw(DIN 7985)
141121640
316р.
13 |
Fill. head screw(DIN 7985) |
141121640 |
|
316р.
|
|
|
Gear housing compl.
Gear housing compl.
316041620
4752р.
14 |
Gear housing compl. |
316041620 |
|
4752р.
|
|
|
Self-tap fill h screw
Self-tap fill h screw
141116020
316р.
15 |
Self-tap fill h screw |
141116020 |
|
316р.
|
|
|
Friction washer cpl.
Friction washer cpl.
316041650
2218р.
16 |
Friction washer cpl. |
316041650 |
|
2218р.
|
|
|
Washer 10,2 X 14,8X 0,2
Washer 10,2 X 14,8X 0,2
141151120
316р.
17 |
Washer 10,2 X 14,8X 0,2 |
141151120 |
|
316р.
|
|
|
Washer 10,2 X 14,8X 0,1
Washer 10,2 X 14,8X 0,1
141152300
476р.
18 |
Washer 10,2 X 14,8X 0,1 |
141152300 |
|
476р.
|
|
|
Washer 10,2 X 14,8X 0,5
Washer 10,2 X 14,8X 0,5
141153920
316р.
19 |
Washer 10,2 X 14,8X 0,5 |
141153920 |
|
316р.
|
|
|
Gasket
Gasket
339011570
316р.
24 |
Gasket |
339011570 |
|
316р.
|
|
|
Flange w.clamping lever cpl.
Flange w.clamping lever cpl.
316041720
4752р.
25 |
Flange w.clamping lever cpl. |
316041720 |
|
4752р.
|
|
|
Compression Spring
Compression Spring
342050840
316р.
26 |
Compression Spring |
342050840 |
|
316р.
|
|
|
Spindle shaft
Spindle shaft
341161030
3802р.
27 |
Spindle shaft |
341161030 |
|
3802р.
|
|
|
Safety clutch w.pinion,M14 230V
Safety clutch w.pinion,M14 230V
316045380
13306р.
28 |
Safety clutch w.pinion,M14 230V |
316045380 |
|
13306р.
|
|
|
Motor housing
Motor housing
315013210
1268р.
29 |
Motor housing |
315013210 |
|
1268р.
|
|
|
Brush holder compl. cut out,230V
Brush holder compl. cut out,230V
316046890
1900р.
30 |
Brush holder compl. cut out,230V |
316046890 |
|
1900р.
|
|
|
Carbon brush set cut-off
Carbon brush set cut-off
316046900
1900р.
31 |
Carbon brush set cut-off |
316046900 |
|
1900р.
|
|
|
Switch rod
Switch rod
343393110
316р.
32 |
Switch rod |
343393110 |
|
316р.
|
|
|
Switch slide
Switch slide
343392980
316р.
33 |
Switch slide |
343392980 |
|
316р.
|
|
|
Housing cover
Housing cover
343392990
950р.
34 |
Housing cover |
343392990 |
|
950р.
|
|
|
M-Label 08 TR 49-51x25 WE 9-125 Quick
M-Label 08 TR 49-51x25 WE 9-125 Quick
338122760
0р.
35 |
M-Label 08 TR 49-51x25 WE 9-125 Quick |
338122760 |
|
0р.
|
|
|
Cable clip
Cable clip
343362490
476р.
36 |
Cable clip |
343362490 |
|
476р.
|
|
|
Self-tap fill h screw
Self-tap fill h screw
141116020
316р.
37 |
Self-tap fill h screw |
141116020 |
|
316р.
|
|
|
Cable sleeve
Cable sleeve
344100970
316р.
38 |
Cable sleeve |
344100970 |
|
316р.
|
|
|
Anti-vibration handle,M 8
Anti-vibration handle,M 8
314000970
2534р.
39 |
Anti-vibration handle,M 8 |
314000970 |
|
2534р.
|
|
|
Baffle
Baffle
339151050
316р.
40 |
Baffle |
339151050 |
|
316р.
|
|
|
Field coil compl.,230V
Field coil compl.,230V
311010710
9504р.
41 |
Field coil compl.,230V |
311010710 |
|
9504р.
|
|
|
Spring clip
Spring clip
342022040
316р.
42 |
Spring clip |
342022040 |
|
316р.
|
|
|
Lever
Lever
341070440
634р.
43 |
Lever |
341070440 |
|
634р.
|
|
|
Circlip
Circlip
141181810
316р.
44 |
Circlip |
141181810 |
|
316р.
|
|
|
Wheel guard,D125
Wheel guard,D125
339203010
2218р.
45 |
Wheel guard,D125 |
339203010 |
|
2218р.
|
|
|
Clamping flange
Clamping flange
341031160
1900р.
46 |
Clamping flange |
341031160 |
|
1900р.
|
|
|
Clamping nut compl.,M14
Clamping nut compl.,M14
316023660
2852р.
47 |
Clamping nut compl.,M14 |
316023660 |
|
2852р.
|
|
|
Rating plate
Rating plate
338048890
0р.
49 |
Rating plate |
338048890 |
|
0р.
|
|
|
Part not needed
Part not needed
399999990
0р.
50 |
Part not needed |
399999990 |
|
0р.
|
|
|
Electronic unit,230V/50Hz
Electronic unit,230V/50Hz
343080950
6970р.
51 |
Electronic unit,230V/50Hz |
343080950 |
|
6970р.
|
|
|
Switch
Switch
343409450
1900р.
52 |
Switch |
343409450 |
|
1900р.
|
|
|
Housing black
Housing black
343395620
634р.
53 |
Housing black |
343395620 |
|
634р.
|
|
|
Fillister head screw
Fillister head screw
141123490
316р.
54 |
Fillister head screw |
141123490 |
|
316р.
|
|
|
Cable with plug
Cable with plug
344497150
2852р.
55 |
Cable with plug |
344497150 |
|
2852р.
|
|
|
Washer,7,05x19,5x0,2
Washer,7,05x19,5x0,2
339006390
316р.
56 |
Washer,7,05x19,5x0,2 |
339006390 |
|
316р.
|
|
|
Washer 10,2 X 14,8X 1,0
Washer 10,2 X 14,8X 1,0
141155550
316р.
57 |
Washer 10,2 X 14,8X 1,0 |
141155550 |
|
316р.
|
|
|
Grease 100G
Grease 100G
344130920
6336р.
880 |
Grease 100G |
344130920 |
|
6336р.
|
|
|
Grease SF 011 50Gr 1,8oz
Grease SF 011 50Gr 1,8oz
344130560
4118р.
885 |
Grease SF 011 50Gr 1,8oz |
344130560 |
|
4118р.
|
|
|
Wiring diagram,120-230V
Wiring diagram,120-230V
338504660
0р.
1001 |
Wiring diagram,120-230V |
338504660 |
|
0р.
|
|
|
