Запчасти для Bosch GSR_18_V-LI_(3601H66100)
/GSR_18_V-LI_(3601H66100).jpg "Запчасти для Bosch GSR_18_V-LI_(3601H66100)")

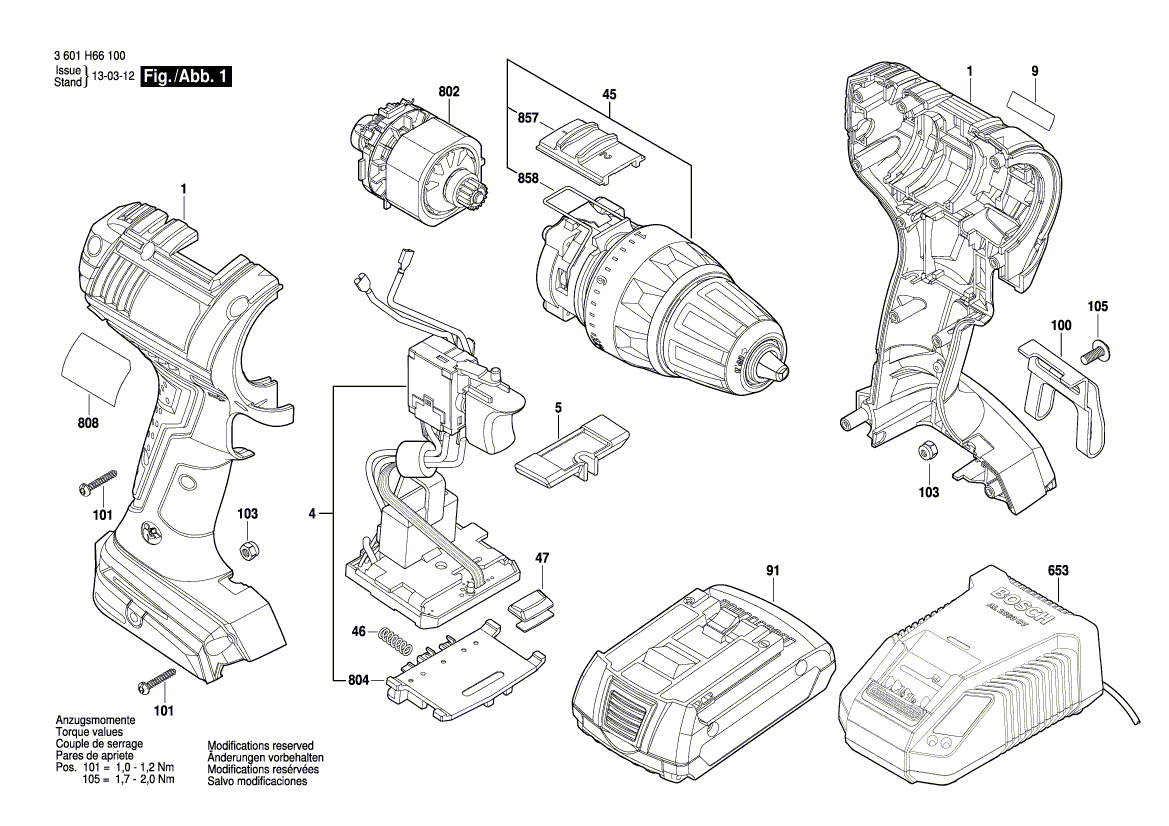

Запчасти для Bosch GSR_18_V-LI_(3601H66100). Схема, деталировка
| № ▼ |
Наименование | Артикул | Изоб. | Цена | ||
| 0 | Charger EU 230/10,8-18V, 30 MIN | 2607225321 |
|
14287р. | ||
| 0 | Charger GB 230/10,8-18V, 30 MIN | 2607225323 |
|
10106р. | ||
| 0 | Fast Charger AUS 240/10,8-18V, 1h | 2607225427 |
|
17424р. | ||
| 0 | Fast Charger GB 230/10,8-18V, 1h | 2607225425 |
|
10106р. | ||
| 0 | Fast Charger ROK 220/10,8-18V, 30 MIN | 2607225333 |
|
17424р. | ||
| 0 | Slide-In Accu Package 18V, 2,6Ah, LI, MS | 2607336091 |
|
27181р. | ||
| 0 | Slide-In Accu Package BBS MR 18V, 3,0Ah, LI | 2607336235 |
|
21780р. | ||
| 1 | Housing | 2609100856 |
|
3833р. | ||
| 4 | Electronics Module | 1607233492 |
|
11152р. | ||
| 5 | Adjusting lever | 2609100859 |
|
174р. | ||
| 9 | Manufacturer's nameplate GSR 18V-LI | 2609132911 |
|
348р. | ||
| 45 | Gear Box | 2609199296 |
|
13765р. | ||
| 46 | Compression Spring | 1609280477 |
|
262р. | ||
| 47 | Lens | 2609100858 |
|
262р. | ||
| 91 | Slide-In Accu Package 18V, 1,3Ah, LI, MS | 2607336169 |
|
19166р. | ||
| 100 | Clip | 2609110956 |
|
1045р. | ||
| 101 | Torx Oval-Head Screw | 2609110353 |
|
174р. | ||
| 103 | Nut | 2609110835 |
|
174р. | ||
| 105 | Screw | 2609110834 |
|
174р. | ||
| 653 | Fast Charger EU 230/10,8-18V, 1h | 2607225423 |
|
14287р. | ||
| 802 | Двигатель Bosсh GSB 18 V-L (арт.2609199359) | 2609199359 |
|
8712р. | ||
| 804 | Contact retainer | 1609280478 |
|
2090р. | ||
| 808 | Nameplate | 1600A00Z1N |
|
0р. | ||
| 857 | Switch Slide | 2609100897 |
|
262р. | ||
| 858 | Switch Spring | 2609111078 |
|
174р. |
