Запчасти для Bosch GSR_14,4-2-LI_(3601JB7400)
/GSR_14,4-2-LI_(3601JB7400).jpg "Запчасти для Bosch GSR_14,4-2-LI_(3601JB7400)")

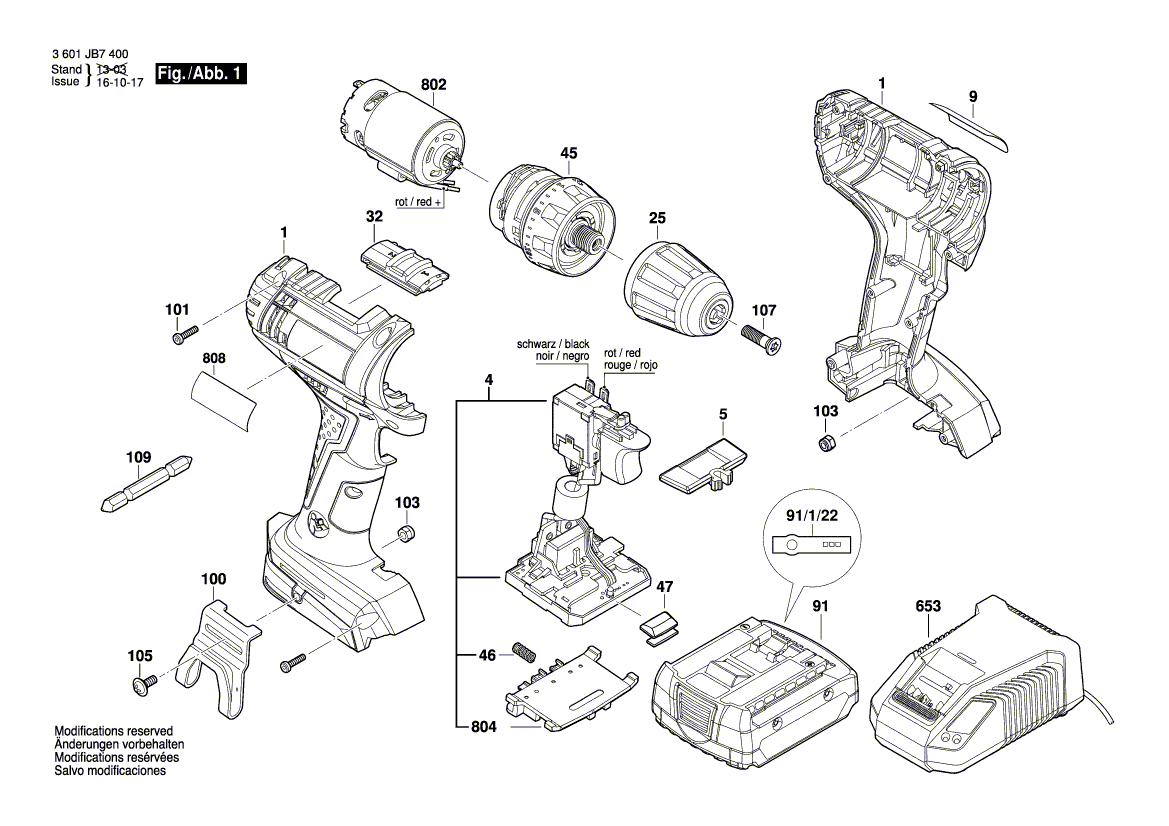

Запчасти для Bosch GSR_14,4-2-LI_(3601JB7400). Схема, деталировка
| № ▼ |
Наименование | Артикул | Изоб. | Цена | ||
| 0 | Fast Charger GB 230/10,8-18V, 1h | 2607225425 |
|
10106р. | ||
| 1 | Housing BLUE | 2609101065 |
|
4356р. | ||
| 4 | Electronics Module | 1607233543 |
|
11152р. | ||
| 5 | Adjusting lever | 2609101009 |
|
348р. | ||
| 9 | Manufacturer's nameplate GSR 14,4-2-LI | 2609133813 |
|
348р. | ||
| 25 | Keyless Chuck | 2609111562 |
|
4879р. | ||
| 32 | Switchover Unit | 2609199279 |
|
174р. | ||
| 45 | Gear Box | 2609199786 |
|
5401р. | ||
| 46 | Compression Spring | 1609280477 |
|
262р. | ||
| 47 | Lens | 2609100858 |
|
262р. | ||
| 91 | 91/1/22 Sticker | 2601115537 |
|
348р. | ||
| 91 | Slide-In Accu Package 14,4V, 1,5Ah, LI | 1617S00SS7 |
|
12894р. | ||
| 100 | Clip | 2609110956 |
|
1045р. | ||
| 101 | Screw | 2609110538 |
|
174р. | ||
| 103 | Nut | 2609110835 |
|
174р. | ||
| 105 | Screw | 2609110834 |
|
174р. | ||
| 107 | Countersunk-Head Screw M6x23 | 2603421229 |
|
262р. | ||
| 109 | Screwdriver Blade | 2609110342 |
|
348р. | ||
| 653 | Fast Charger EU 230/10,8-18V, 1h | 2607225423 |
|
14287р. | ||
| 802 | DC motor 14,4V-18V | 2609199591 |
|
10106р. | ||
| 804 | Contact retainer | 1609280474 |
|
2090р. | ||
| 808 | Nameplate | 1600A00Z2D |
|
0р. |
