Запчасти для Bosch GSR_12_VE-2_(3601J93500)
/GSR_12_VE-2_(3601J93500).jpg "Запчасти для Bosch GSR_12_VE-2_(3601J93500)")

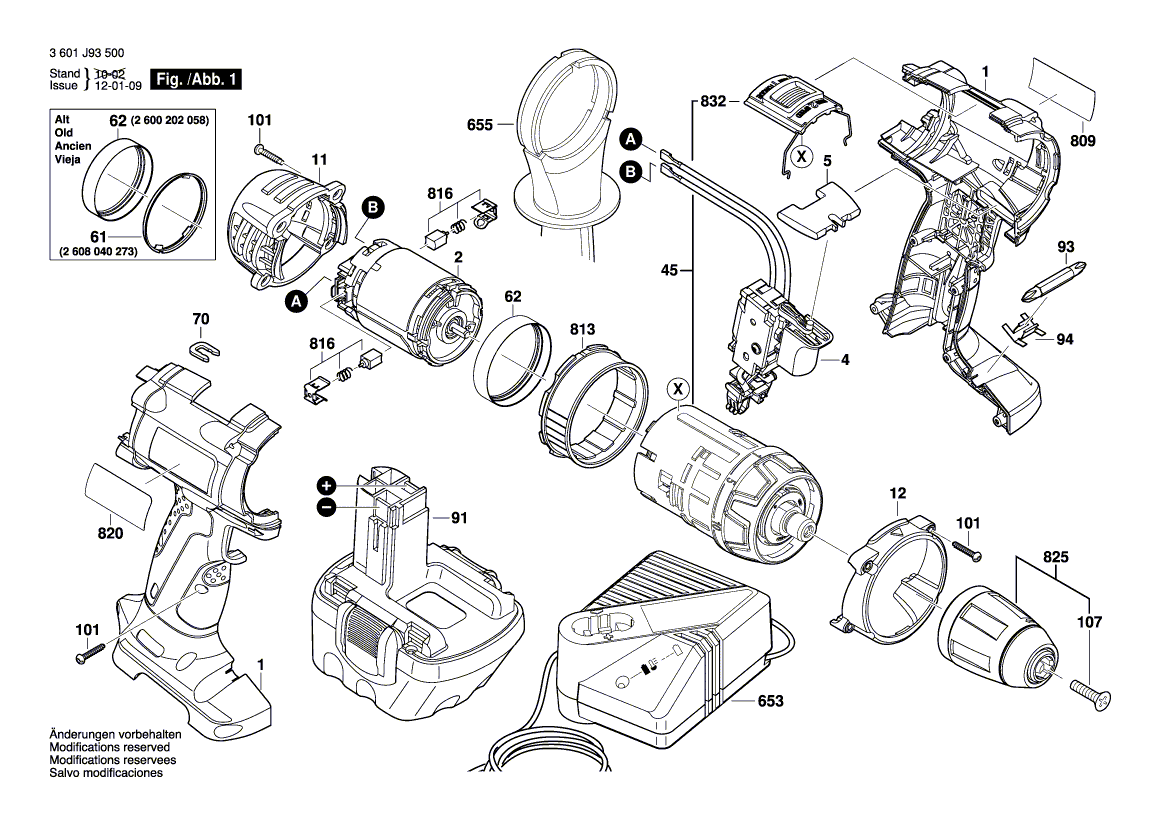

Запчасти для Bosch GSR_12_VE-2_(3601J93500). Схема, деталировка
| № ▼ |
Наименование | Артикул | Изоб. | Цена | ||
| 0 | Carbon-Brush Set 10 x 2 607 034 904 | 1607000488 |
|
9931р. | ||
| 0 | Fast Charger AUS 240/7,2-14,4V, 30 MIN. | 2607224705 |
|
20386р. | ||
| 0 | Fast Charger GB 230/7,2-14,4V, 30 MIN. | 2607224703 |
|
20386р. | ||
| 0 | Fast Charger ROK 220/7,2-14,4V, 30 MIN. | 2607224713 |
|
17424р. | ||
| 0 | Slide-In Accu Package 12V,3,0Ah, NiMh | 2607335691 |
|
27181р. | ||
| 1 | Housing Section BLUE | 2605105100 |
|
2962р. | ||
| 2 | DC motor 12V | 2607022318 |
|
9931р. | ||
| 4 | Electronics Module | 2607230121 |
|
6970р. | ||
| 5 | Adjusting lever RED | 2601099155 |
|
262р. | ||
| 11 | End cap BLACK | 2600508064 |
|
697р. | ||
| 12 | Front Cap | 2600510011 |
|
871р. | ||
| 45 | Planetary Gear Train | 2606200260 |
|
24917р. | ||
| 62 | Retaining snap ring | 2600202067 |
|
1742р. | ||
| 70 | Pickup Clip | 2601250009 |
|
174р. | ||
| 91 | Slide-In Accu Package 12V,2,6Ah,NiMh | 2607335683 |
|
21780р. | ||
| 93 | Screwdriver Blade 6 MM | 1609200147 |
|
437р. | ||
| 94 | Spring Element | 2604690043 |
|
174р. | ||
| 101 | Torx Oval-Head Screw 3x18 | 2603490018 |
|
174р. | ||
| 107 | Countersunk-Head Screw M6x23 | 2603421229 |
|
262р. | ||
| 653 | Fast Charger EU 230/7,2-14,4V, 30 MIN. | 2607224701 |
|
12894р. | ||
| 655 | Auxiliary Handle | 2602025158 |
|
2266р. | ||
| 809 | Manufacturer's nameplate GSR 12 VE-2 | 2601115000 |
|
348р. | ||
| 813 | Locating ring | 2600510012 |
|
871р. | ||
| 816 | Carbon-Brush Set | 2607034904 |
|
1890р. | ||
| 820 | Nameplate | 2601115001 |
|
348р. | ||
| 825 | Keyless Chuck | 2608572901 |
|
9235р. | ||
| 832 | Adjusting lever | 2601099213 |
|
1219р. |
