Запчасти для Bosch GSR_12_VE-2_(0601912520)
/GSR_12_VE-2_(0601912520).jpg "Запчасти для Bosch GSR_12_VE-2_(0601912520)")

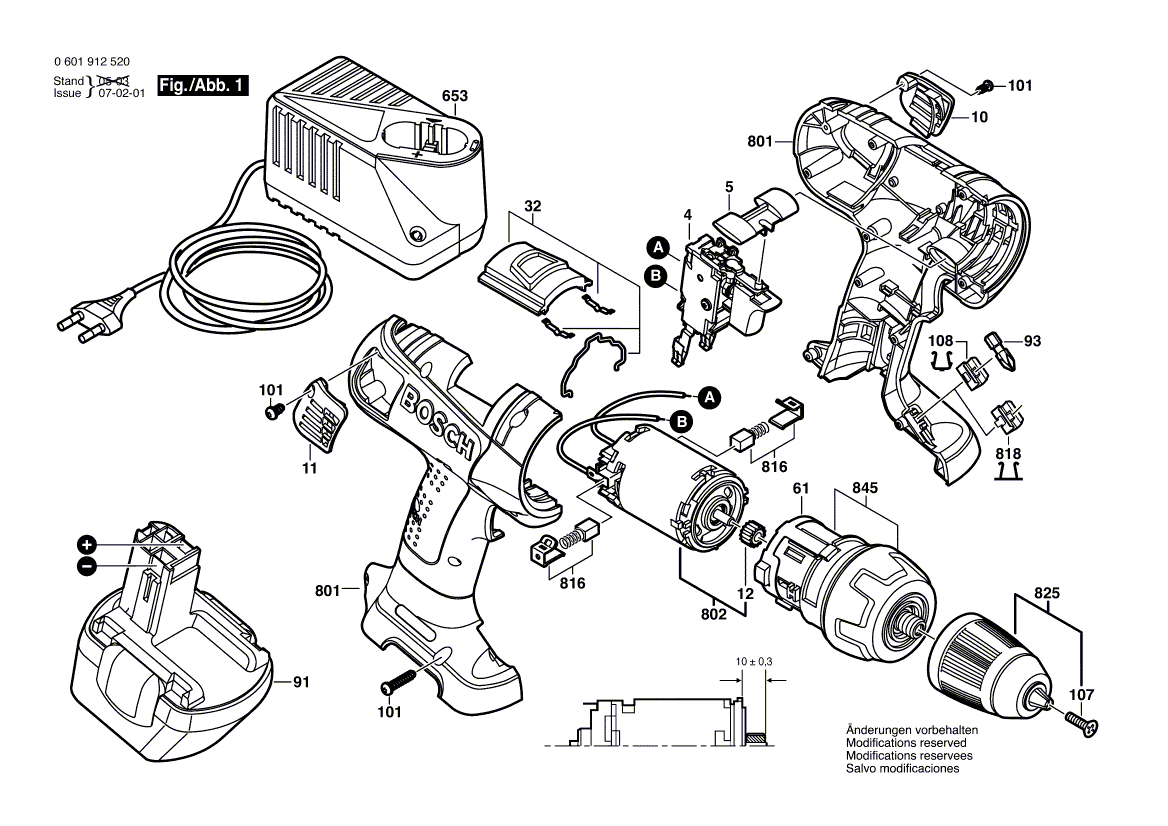

Запчасти для Bosch GSR_12_VE-2_(0601912520). Схема, деталировка
| № ▼ |
Наименование | Артикул | Изоб. | Цена | ||
| 0 | Fast Charger AUS 240/7,2-14,4V, 1h | 2607224443 |
|
11674р. | ||
| 0 | Fast Charger EU 230/7,2-14,4V, 30 MIN. | 2607224701 |
|
12894р. | ||
| 0 | Fast Charger GB 230/7,2-14,4V, 30 MIN. | 2607224703 |
|
19166р. | ||
| 0 | Fast Charger GB 230/7,2-24V, 1h | 2607224427 |
|
20909р. | ||
| 0 | Fast Charger ROK 220/7,2-24V, 1h | 2607224437 |
|
15158р. | ||
| 0 | Fast Charger USA 120/7,2-24V, 1h | 2607224431 |
|
10978р. | ||
| 0 | Slide-In Accu Package 12V,2,0Ah,NiMh | 2607335697 |
|
30666р. | ||
| 0 | Slide-In Accu Package 12V,2,6Ah,NiMh | 2607335683 |
|
21780р. | ||
| 4 | On-Off Switch | 2607200456 |
|
7667р. | ||
| 5 | Adjusting Slide RED | 2601099112 |
|
174р. | ||
| 10 | Cover BLACK | 2600508051 |
|
697р. | ||
| 11 | Cover BLACK | 2600508052 |
|
697р. | ||
| 12 | Pinion | 2606316222 |
|
871р. | ||
| 32 | Adjusting Slide | 2601099127 |
|
1045р. | ||
| 61 | Support | 2608040190 |
|
1219р. | ||
| 91 | Slide-In Accu Package 12V,3,0Ah, NiMh | 2607335691 |
|
27181р. | ||
| 93 | Screwdriver Bit | 2607000366 |
|
0р. | ||
| 101 | Torx Oval-Head Screw 3x18 | 2603490018 |
|
174р. | ||
| 107 | Countersunk-Head Screw M6x23 | 2603421229 |
|
262р. | ||
| 108 | Spring Element | 2604690035 |
|
262р. | ||
| 653 | Fast Charger EU 230/7,2-24V, 1h | 2607224425 |
|
15334р. | ||
| 801 | Housing Section BLUE | 2605105907 |
|
4704р. | ||
| 802 | DC motor 12V | 2607022863 |
|
11152р. | ||
| 816 | Carbon-Brush Set | 2607034904 |
|
1890р. | ||
| 818 | Spring Element | 2604690026 |
|
262р. | ||
| 825 | Keyless Chuck | 2608572900 |
|
9235р. | ||
| 845 | Planetary Gear Train | 2606200931 |
|
14287р. |
