Запчасти для Bosch GSR_12_V_(3601J95500)
/GSR_12_V_(3601J95500).jpg "Запчасти для Bosch GSR_12_V_(3601J95500)")

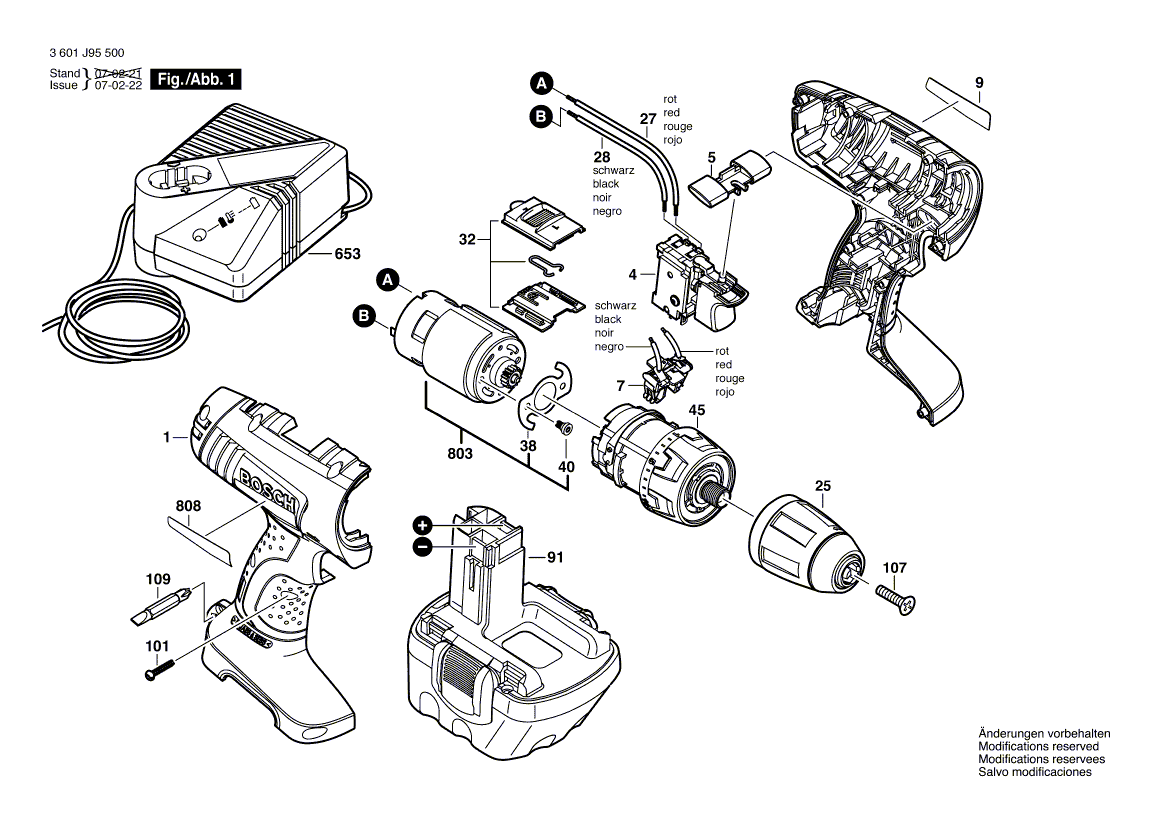

Запчасти для Bosch GSR_12_V_(3601J95500). Схема, деталировка
| № ▼ |
Наименование | Артикул | Изоб. | Цена | ||
| 0 | Fast Charger EU 230/7,2-24V, 1h | 2607224425 |
|
9931р. | ||
| 0 | Fast Charger GB 230/7,2-24V, 1h | 2607224427 |
|
0р. | ||
| 0 | Fast Charger GB 230/7,2-24V, 1h | 2607224427 |
|
0р. | ||
| 0 | Slide-In Accu Package 12V,2,0Ah,NiMh | 2607335697 |
|
0р. | ||
| 1 | Housing | 2609100501 |
|
2440р. | ||
| 4 | Switch BLACK | 2607202014 |
|
5227р. | ||
| 5 | Reverse-Transfer Lever | 2609100504 |
|
174р. | ||
| 7 | Contact retainer RED | 2609199125 |
|
348р. | ||
| 9 | Manufacturer's nameplate GSR 12 | 2609131281 |
|
0р. | ||
| 25 | Keyless Chuck 10 MM | 2609110660 |
|
6272р. | ||
| 27 | Connecting Cable RED | 2609120264 |
|
174р. | ||
| 28 | Connecting Cable BLACK | 2609120263 |
|
174р. | ||
| 32 | Slide Switch | 2609199119 |
|
437р. | ||
| 38 | Tab Washer | 2609110633 |
|
0р. | ||
| 40 | Screw | 2609110634 |
|
174р. | ||
| 45 | Planetary Gear Train | 2609199343 |
|
6796р. | ||
| 91 | Slide-In Accu Package 12V,2,0Ah,NiCd | 2607335261 |
|
18992р. | ||
| 101 | Torx Flat-Head Screw 3x16 | 2609110201 |
|
174р. | ||
| 107 | Pan head screw M 6x30 | 2609110635 |
|
262р. | ||
| 109 | Screwdriver Bit | 2609160063 |
|
697р. | ||
| 653 | Fast Charger EU 230/7,2-24V, 1h | 2607224425 |
|
9931р. | ||
| 803 | DC motor 12V | 2609199126 |
|
5401р. | ||
| 808 | Nameplate | 2609135897 |
|
0р. |
