GREEN70_115_200_1

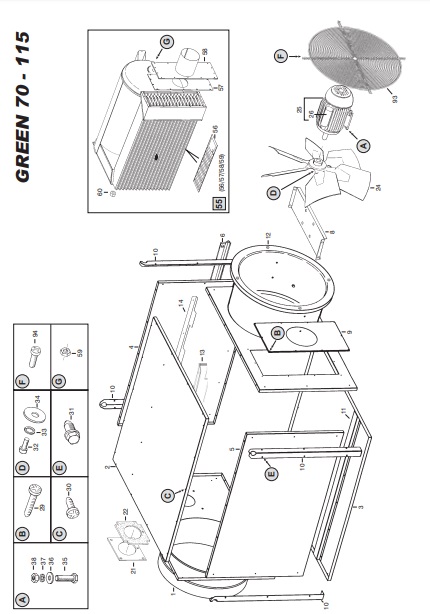

GREEN70_115_200_1. Схема, деталировка
| № ▼ |
Наименование | Артикул | Изоб. | Цена | ||
| 1 | Outlet air panel | SR |
|
1р. | ||
| 1 | Outlet air panel | SR |
|
1р. | ||
| 2 | Upper panel | SR |
|
1р. | ||
| 2 | Upper panel | SR |
|
1р. | ||
| 3 | Lower panel | SR |
|
1р. | ||
| 3 | Lower panel | SR |
|
1р. | ||
| 4 | Side SX panel | SR |
|
1р. | ||
| 4 | Side SX panel | SR |
|
1р. | ||
| 5 | Side DX panel | SR |
|
1р. | ||
| 5 | Side DX panel | SR |
|
1р. | ||
| 6 | Electric wire cover | SR |
|
1р. | ||
| 6 | Electric wire cover | SR |
|
1р. | ||
| 8 | Motor support plate | 4032015 |
|
8014р. | ||
| 8 | Motor support plate | 4032016 |
|
11305р. | ||
| 9 | Chimney flange | SR |
|
1р. | ||
| 9 | Chimney panel | SR |
|
1р. | ||
| 10 | Suspending frame | SR |
|
1р. | ||
| 10 | Suspending frame | SR |
|
1р. | ||
| 11 | Comb. chamber support | SR |
|
1р. | ||
| 11 | Comb. chamber support | SR |
|
1р. | ||
| 12 | Fan support panel | SR |
|
1р. | ||
| 12 | Fan support panel | SR |
|
1р. | ||
| 13 | Air flap | SR |
|
1р. | ||
| 14 | Air flap | SR |
|
1р. | ||
| 21 | Burner support | 4031118 |
|
7979р. | ||
| 21 | Burner support | 4032028 |
|
48р. | ||
| 22 | Burner plate seal | 4031201 |
|
1550р. | ||
| 24 | Fan | 4031347 |
|
32654р. | ||
| 24 | Fan | 4032031 |
|
0р. | ||
| 25 | Motor HP 0,75 230 | 4032035 |
|
81209р. | ||
| 25 | Motor HP 1,5 230 | 4032036 |
|
101420р. | ||
| 26 | Capacitor mF 16 | 4032037 |
|
7865р. | ||
| 26 | Capacitor mF 32 | 4031346 |
|
10084р. | ||
| 29 | Screw TC 8x1 | 4140675 |
|
158р. | ||
| 30 | Screw TC 8x1/2 | 4032039 |
|
48р. | ||
| 31 | Screw TE 14x1/2 FR | 4032040 |
|
127р. | ||
| 32 | Screw TE M10x30 | 4032042 |
|
48р. | ||
| 32 | Screw TE M6x16 | 4032041 |
|
48р. | ||
| 33 | Spring waher ø10 | 4032043 |
|
48р. | ||
| 33 | Spring waher ø6 | 4032044 |
|
48р. | ||
| 34 | Waher ø11x35x2 | 4032046 |
|
48р. | ||
| 34 | Waher ø6x24x2 | 4140667 |
|
158р. | ||
| 35 | Screw TE M8x30 | 4032047 |
|
48р. | ||
| 36 | Waher ø8x24x2,5 | 4140668 |
|
158р. | ||
| 37 | Spring waher ø8 | 4140669 |
|
158р. | ||
| 38 | Nut M8 | 4140671 |
|
158р. | ||
| 39 | El. components box | 4032051 |
|
18088р. | ||
| 40 | Cable fastener PG 11 | 4032052 |
|
634р. | ||
| 41 | Cable fastener PG 9 | 4032053 |
|
554р. | ||
| 42 | El. components supp. plate | 4032054 |
|
2292р. | ||
| 43 | Terminal board | 4032055 |
|
1109р. | ||
| 44 | Terminal board | 4032056 |
|
1560р. | ||
| 45 | Contactor Wimex | 4031334 |
|
12118р. | ||
| 46 | Relay Iskra | 4032060 |
|
16062р. | ||
| 46 | Relay Iskra | 4032063 |
|
16062р. | ||
| 47 | Control knob 1-0-2 | 4031268 |
|
6060р. | ||
| 48 | Fuse holder | 4031902 |
|
1310р. | ||
| 49 | Fuse (5x20) A.6 | 4031102 |
|
317р. | ||
| 50 | Red pilot lamp Ø12 | 4031169 |
|
792р. | ||
| 55 | Combustion chamber | 4032069 |
|
457243р. | ||
| 55 | Combustion chamber | 4032068 |
|
354862р. | ||
| 56 | Baffle plate | 4032070 |
|
6612р. | ||
| 57 | Chimney seal | 4031365 |
|
2482р. | ||
| 57 | Chimney seal | 4032072 |
|
3978р. | ||
| 58 | Chimney cover | 4032074 |
|
48р. | ||
| 58 | Chimney cover | 4032073 |
|
48р. | ||
| 59 | Nut M6 brass | 4032075 |
|
238р. | ||
| 60 | Female plug 1 | 4032076 |
|
2411р. |
